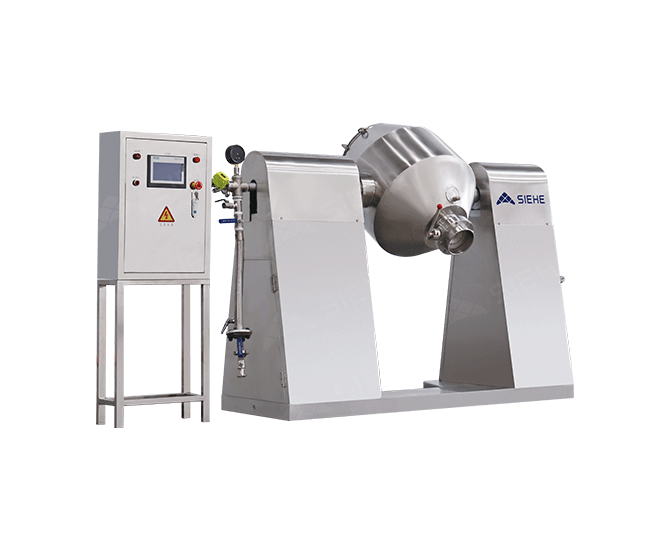

Double Cone Mixer
Double cone mixer is mainly used in powder-powder mixing, especially for materials in small batch and has high uniformity requirement. The equipment adopts W structure and cylinder is rotatable. The mixing process is divided into stop & feeding, start & mixing, stop & discharging, etc. Vacuum feeding device can be equipped.
-
Materials Specific Gravity≤7g/cm³
-
Production Capacity100-4,000L
-
Application IndustrySuitable for the material mixing of pharmacy, food, essence,dye, chemical industry, plastic, rubber and etc. (more information please click FREE CONSULTATION)
-
Applicable MaterialsPowders or particles whose specific gravity is under 7g/cm³and with certain fluidity, liquid content is under 10%, such as medical intermediate, flavoring, flour, essence, graphite, coffee powder, iron powder and etc.
Product Advantages
-
1. Nice structure, easy to operate and clean, stable working without noisy.01
2. High uniformity for almost all materials mixing.
3. Can be vacuumed feeding and discharged by butterfly valve to realize dust-free operation.
4. Overloading protection protect the motor and tachometer control the location of discharged material after operation.
5. In terms of materials lack of fluidity, forced agitator is in option.
6. Spray device is option to inject small scale liquid.
7. Jacket is available to heat, cool and dry materials.
Working Principle
D V-shape mixer consists of rotatable cylinder, support frame, driving part, etc..
The cylinder is designed as W-shape, mixing blade can be mounted inside the cylinder. Materials are lifted, dripped, mixed with the rotation of cylinder during operation, therefore no mixing dead zone.
Recommended Product
Technical Parameter
| Model | Design Volume(L) | Capacity
(L) |
Power
(kw) |
Speed
(rpm) |
Size (mm) | Weight
(kg) |
||
|---|---|---|---|---|---|---|---|---|
| Length | Width | Width | ||||||
| SHHZ-100 | 100 | 20~50 | 1.5 | 15 | 1300 | 600 | 1400 | 250 |
| SHHZ-200 | 200 | 40~100 | 1.5 | 15 | 1500 | 600 | 1600 | 300 |
| SHHZ-300 | 300 | 60~150 | 2.2 | 15 | 1580 | 650 | 1720 | 380 |
| SHHZ-400 | 400 | 80~200 | 2,2. | 15 | 1800 | 700 | 1900 | 600 |
| SHHZ-500 | 500 | 100~250 | 2.2 | 15 | 2010 | 800 | 2000 | 650 |
| SHHZ-1000 | 1000 | 200~500 | 3 | 12 | 2300 | 1050 | 2570 | 900 |
| SHHZ-1500 | 1500 | 300~750 | 4 | 12 | 2900 | 1300 | 2660 | 980 |
| SHHZ-2000 | 2000 | 400~1000 | 5.5 | 12 | 3000 | 1300 | 2800 | 1510 |
| SHHZ-2500 | 2500 | 500~1250 | 7.5 | 12 | 3000 | 1300 | 3180 | 1550 |
| SHHZ-3000 | 3000 | 600~1500 | 11 | 10 | 3100 | 1300 | 3400 | 1650 |
| SHHZ-4000 | 4000 | 800~2000 | 15 | 10 | 3200 | 1300 | 3600 | 1880 |
| SHHZ-6000 | 6000 | 1200~3000 | 22 | 10 | 3500 | 1300 | 3800 | 2350 |
| SHHZ-8000 | 8000 | 1600~4000 | 30 | 10 | 3980 | 1300 | 4300 | 2680 |
* The above listed Max. processing capacity is calculated as per powder with specific gravity 1 as medium. The model selection should depend on the comprehensive factors such as
materials viscosity, specific gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection.
* The above data and picture is subject to change without notice. The accurate parameter should be subject to the object.
