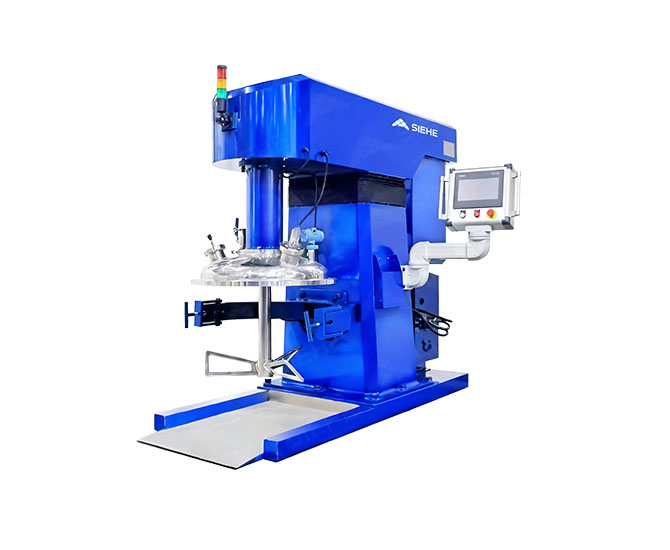

Butterfly Dispersing Mixer
-
Materials Viscosity≤1,000,000 cps
-
Production Capacity:50-5000L
-
Application IndustryPrefect meet the requirement of dispersing and mixing materials in industries such as paint, putty, ink, adhesive, lithium battery slurry etc. (Please click ‘Free Consultation’ for more information)
-
Application MaterialsGood for all kinds of slurries with viscosity less than 100,000cps, and solid content less than 80%, such as putty, UV ink, structural adhesive, anaerobic adhesive and etc.
Advantages
-
higher efficiency, better quality
The linear velocity is over 20m/s, meanwhile, it can disperse the powder materials in to liquid rapidly. The unique design of the butterfly agitator is with a good mixing performance. Dispersing and mixing together to ensure the finished products with good quality.01
-
Safer and easier operation
Adopt hydraulic cylinder as lifting actuator. Control the hydraulic up, stop, down through the oil pump, easy operation and stable. The dispersing disc is fixed to the main shaft with Hexagon socket-head cap screws, which can be disassembled and exchanged quickly, easy to clean.02
-
Various installation type
Different design of dispersing discs and agitators based on different production technology and materials property ensures the best dispersing and mixing result. The agitator can be with scraper to avoid mixing dead zones, prevent materials from staying on the wall to better the uniformity of the products.03
-
Customized Options
Different options are available such as explosion-proof type, closed type, etc.. Material can be customized to be SS304 \SS321 \SS316L .04
working principle
Through the high-speed rotation dispersing disc, the materials will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.
The butterfly agitator will generate excellent axial and radial action to enhance the materials circulation, so the dispersing efficiency will be improved significantly.
The hydraulic pump drives the hydraulic cylinder to go up and down, which drives the whole transmission and working set up and down.

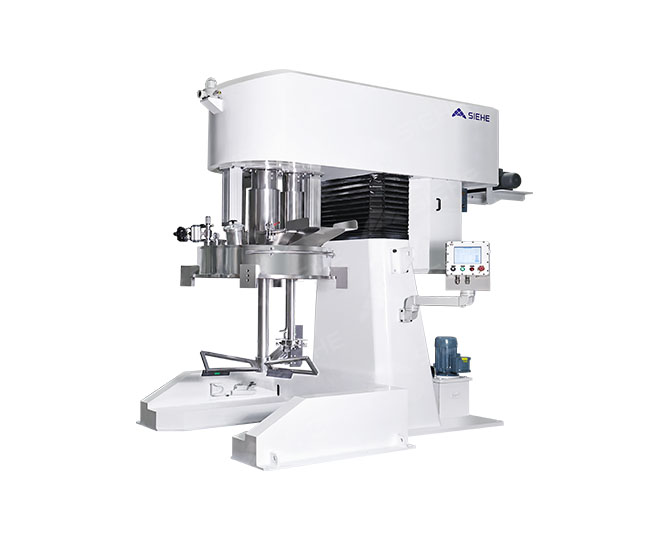

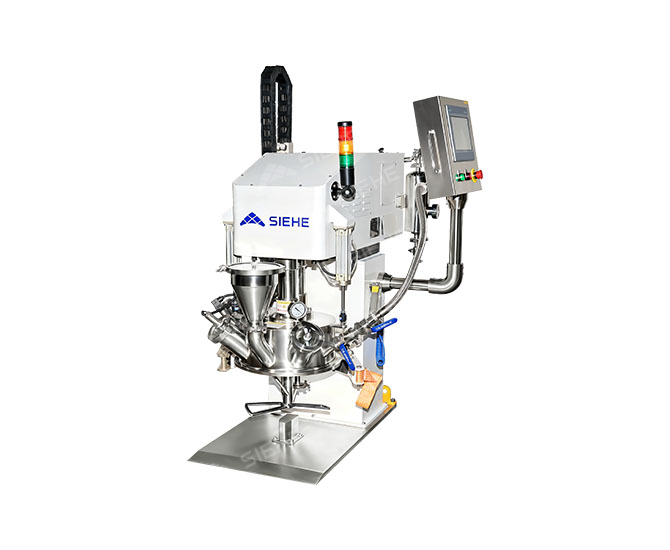

Related Machine
Technical Parameters
| model | Working volume
(L) |
Design volume
(L) |
Hydraulic power
(kw) |
Dispersing power
(kw) |
Dispersing speed
(rpm) |
Mixing power
(kw) |
Mixing speed
(rpm) |
Lift
(mm) |
Tank Dimension
(mm) |
| SFSD-5 | 5 | 7.5 | 0.05
(Electrical) |
1.1 | 0-6000 | 1.1 | 0-260 | 550 | Φ211*212 |
| SFSD-20 | 20 | 27 | 1.1 | 3 | 0-3000 | 4 | 0-260 | 550 | Φ350*280 |
| SFSD-50 | 50 | 68 | 1.1 | 5.5 | 0-2000 | 7.5 | 0-240 | 550 | Φ460*410 |
| SFSD-80 | 80 | 107 | 1.5 | 7.5 | 0-2000 | 11 | 0-210 | 600 | Φ550*450 |
| SFSD-100 | 100 | 140 | 1.5 | 11 | 0-1500 | 15 | 0-210 | 650 | Φ600*500 |
| SFSD-200 | 200 | 280 | 2.2 | 18.5 | 0-1500 | 22 | 10-180 | 800 | Φ750*650 |
| SFSD-300 | 300 | 400 | 3 | 22 | 0-1500 | 30 | 10-170 | 900 | Φ850*710 |
| SFSD-500 | 500 | 665 | 4 | 30 | 0-1500 | 37 | 10-170 | 1050 | Φ1000*850 |
| SFSD-800 | 800 | 1070 | 5.5 | 30 | 0-1200 | 45 | 10-120 | 1150 | Φ1200*950 |
| SFSD-1000 | 1000 | 1320 | 5.5 | 37 | 0-1200 | 55 | 10-120 | 1200 | Φ1300*1000 |
| SFSD-1500 | 1500 | 1980 | 7.5 | 45 | 0-1000 | 75 | 10-95 | 1400 | Φ1450*1200 |
| SFSD-2000 | 2000 | 2550 | 7.5 | 55 | 0-1000 | 90 | 10-85 | 1550 | Φ1550*1350 |
The capacity on above table is tested with the material in viscosity 100,000cps . Please choose the model according to viscosity and specific gravity of materials.
Special operation condition, such as high temperature, high pressure, explosive, combustible corrosive and etc, requires details to select a correct device.
If there is any changes in above table, subject shall prevail.
The table cannot include the entire products, please contact with our sales engineers to get more information.
