Filter Cart

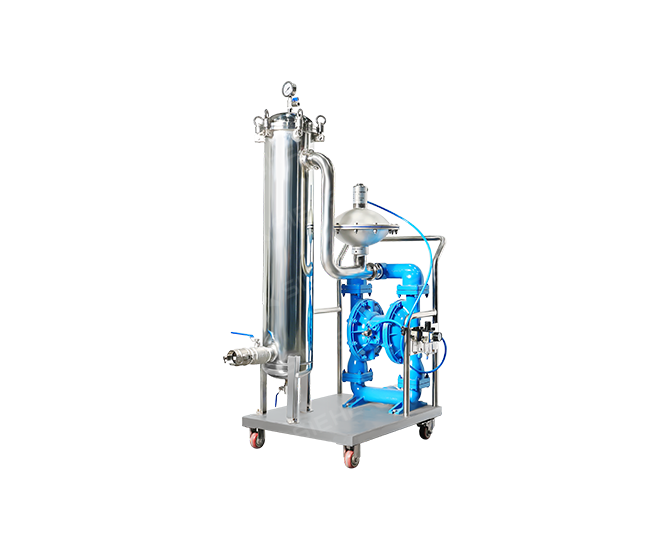

Filter cart consists of a stainless steel bag type filter, a pneumatic diaphragm pump, air filter and oil lubricator, single air control valve, all the components are on the cart. It can be removed to any place of the production line. Bag-type Filtrating system is a new type filtrating system. Liquid flows into filtering bag inside supported by metal net basket from inlet, and comes out from the outlet of filtering bag. Impurities are left on the bags and the machine can be continually used by replacing bags. The bag-type filter is mainly used of coarse filtration. A pressure gauge is equipped for reminding the bag replacement when the pressure is too high.
-
Material Viscosity≤50,000 cps
-
Filtering Fineness0.5-1,000um
-
Application IndustrySuitable for filtration materials in industries such as food, paint, ink, adhesive, pigment, pesticide, water treatment, paper making and etc.(For more information, please click Free consultation)
-
Applicable MaterialsApplicable for all kind of slurry with viscosity less than 10,000 cps, filtration fineness is more than 0.5um such as emulsion paint, industrial paint, water-based ink, pesticides, adhesives etc.
Product Advantages
-
Better Sealing
Filter Cart from Siehe Industry is with special sealing structure, combining with special sealing ring and special mouth of the filter bag, it can avoid any possible materials leakage.01
-
Easier to replace, safer and energy saving
With advantages of little probability of side leakage, high filtration accuracy is ensured, and it is quick to change the bags. Bag-type filter can bear big working pressure, little pressure loss, low running cost and energy saving.02
-
High filtration accuracy, wide application range
With high filtration accuracy, suitable for any tiny particles and suspensions with filtration range from 0.5um to 200um.03
-
Better maneuverability
Filter Cart can be moved easily.04
The flow of the pneumatic diaphragm pump is adjustable , in addition it is with certain suction and lift as well as self-protection function to ensure the pump will not be damaged even when the filter is blocked.
Working Principle
Filter cart consists of a stainless steel bag type filter, a pneumatic diaphragm pump, air filter and oil lubricator, single air control valve, all the components are on a stainless steel trolley.
Pneumatic diaphragm pump sucks the raw materials from tank or vessel to the filter shell and goes into the filter though the inlet at the side of shell. The filtrated materials are pumped into filling machine to be packed or storage tanks .
Bag-type Filter, a pressure type filter, mainly consists of filter shell, filter shell cover and quick-open structure, stainless steel filtration bag with strengthened net etc. Liquid goes into the filter through the inlet on the side of the device shell. The filter bag itself is in the strengthened net basket, qualified liquid can be obtained after going through the filter bag with required filtration level because all the impurity particles are blocked by the filter bag during this process..
Stainless steel removable cart is easy to move due to its universal wheels. No sparks during operation so that it can work during ex-proof surroundings.
Recommended Product
Technical Parameter
Max Flow： 40 m³/h
Filtration Fineness：0.5-1500 μm
