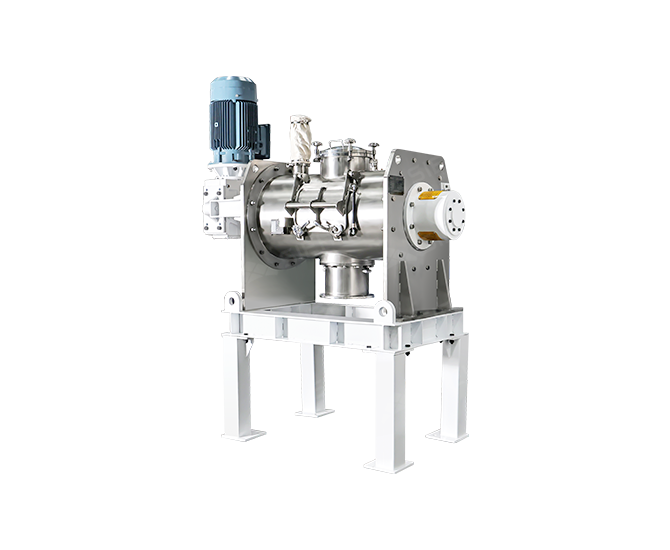

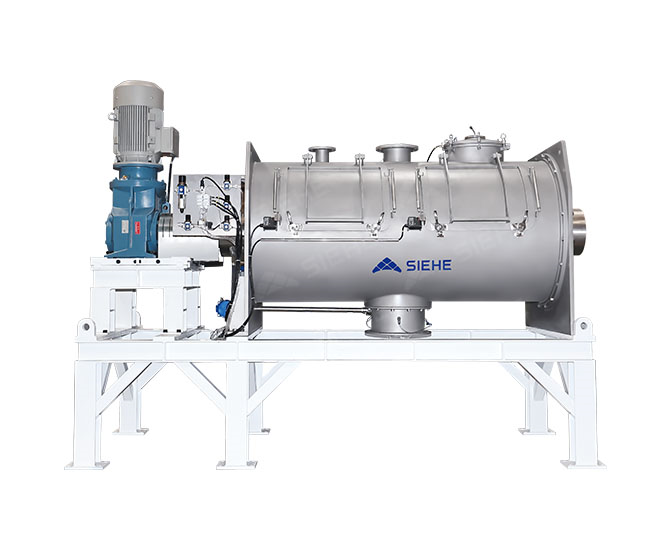

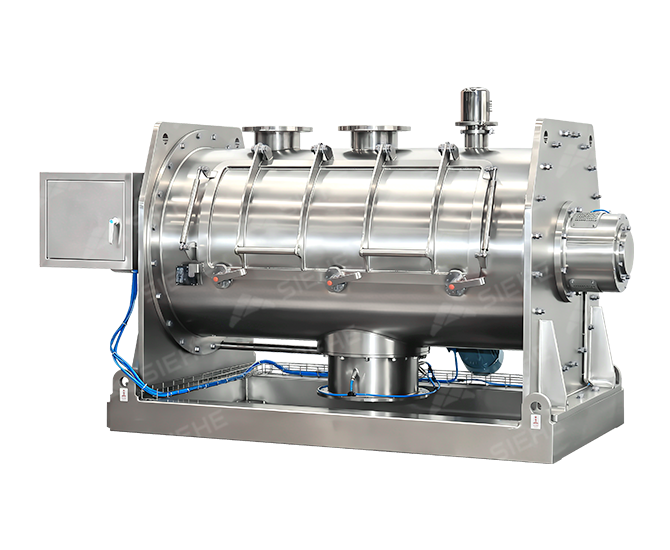

Horizontal plough mixer is a Germany-technical late-model mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush. The agitator consists of multi-group of plough and fly-cutter which works together to mixing, smash, and dispersing materials. It is widely used in the mixing of powder-powder, powder-liquid and powder-particles, especially for the materials which may get aggregation during mixing. Liquid can be sprayed into powders. Vacuum system and drying system are also in option.
Horizontal plough mixer consists of drive disk assembly, agitator, round-shape cylinder, high-speed fly-cutter. The plough not only disperses materials along axial direction during high speed rotation, but drives the materials flow in circles around the cylinder wall, which settles the stratification efficiently. At the same time, fly-cutter rotates in high speed to smash the agglomeration. With the combined action of plough and fly-cutter, materials can be fully mixer in short period.
Model | Power
(kw) |
Speed (rpm) | Fly-cutter Power&Q’ty (kw) | Fly-cutter speed(rpm) | Size
(mm) |
Capacity
(L) |
Size | Weight
(kg) |
||
---|---|---|---|---|---|---|---|---|---|---|
length | width | Height | ||||||||
SHDH-0.05 | 2.2 | 0-150 | 1.5*1 | 2930 | Ø400*418 | 20-30 | 1000 | 700 | 1200 | 260 |
SHDH-0.1 | 3 | 85 | 3*1 | 1440 | Ø400*800 | 30-60 | 1500 | 500 | 700 | 400 |
SHDH-0.2 | 4 | 85 | 3*1 | 1440 | Ø500*1000 | 60-120 | 2000 | 600 | 900 | 600 |
SHDH-0.5 | 7.5 | 62 | 3*2 | 1440 | Ø700*1200 | 150-300 | 2500 | 800 | 1200 | 1100 |
SHDH-1 | 11 | 62 | 3*2 | 1440 | Ø900*1500 | 300-600 | 2700 | 1000 | 1450 | 1600 |
SHDH-2 | 15 | 50 | 3*3 | 1440 | Ø1100*2000 | 600-1200 | 3300 | 1200 | 1700 | 2500 |
SHDH-3 | 18.5 | 50 | 3*3 | 1440 | Ø1280*2250 | 900-1800 | 3800 | 1300 | 1950 | 2900 |
SHDH-4 | 22 | 42 | 3*4 | 1440 | Ø1400*2700 | 1200-2400 | 4100 | 1400 | 2000 | 4000 |
SHDH-5 | 30 | 42 | 3*4 | 1440 | Ø1500*3000 | 1500-3000 | 4200 | 1500 | 2000 | 4500 |
SHDH-6 | 37 | 42 | 3*4 | 1440 | Ø1600*3200 | 1800-3600 | 4500 | 1700 | 2000 | 6000 |
SHDH-8 | 45 | 33 | 3*5 | 1440 | Ø1650*3750 | 2400-4800 | 5000 | 1800 | 2200 | 7500 |
SHDH-10 | 55 | 33 | 3*5 | 1440 | Ø1800*4000 | 3000-6000 | 6000 | 1900 | 2500 | 8500 |
SHDH-15 | 75 | 26 | 3*6 | 1440 | Ø2000*4800 | 4500-9000 | 7000 | 2100 | 2800 | 9800 |
SHDH-20 | 90 | 26 | 3*8 | 1440/2930 | Ø2200*5600 | 6000-12000 | 8000 | 2400 | 3000 | 13800 |
SHDH-30 | 132 | 20 | 3*8 | 1440/2930 | Ø2300*7500 | 9000-18000 | 10000 | 2600 | 3500 | 18500 |
* The above listed Max. processing capacity is calculated as per powder with specific gravity 1 as medium. The model selection should depend on the comprehensive factors such as
materials viscosity, specific gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection.
* The above data and picture is subject to change without notice. The accurate parameter should be subject to the object.
* Not all products are listed. For more information, please contact our sales engineer.
