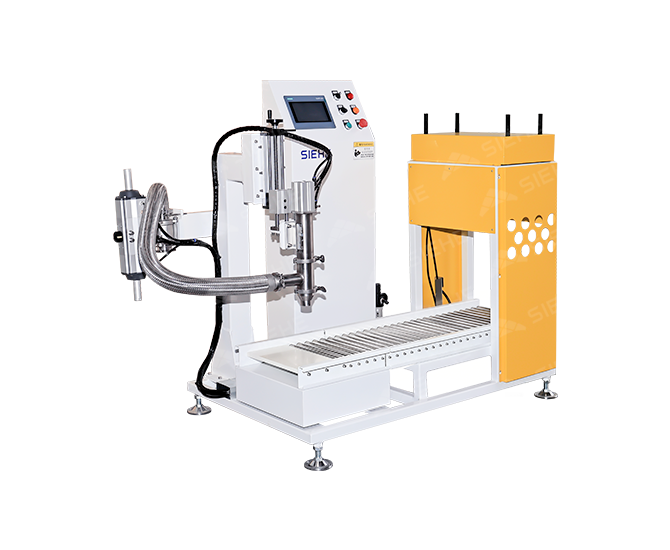

Semi-automatic Filling Machine (Volume Type)
Semi-automatic Filling Machine (Volume Type) adopts volumetric method to measure, through the way adjusting the plunger volume to realize the control of filling quantity. It is equipped with a pump in the front end of the feeding port, or pressuring the material tanks to send material from tank to the filling machine. The filter device can be added before filling to guarantee the quality of products. The reciprocating movement of the piston achieves filling rapidly. The equipment has advantages of high filling efficiency and easy maintenance. SIEHE Semi-automatic Filling Machine (Volume Type) is widely used in industries such as coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc.. It is suitable for the filling of high, medium and low viscosity liquid.
-
Materials Viscosity≤100,000 cps
-
Production Capacity500-20,000ml
-
Application IndustrySuitable for filling of liquid in industries such as coating, paint, ink, adhesive, curing agent, organic solvent, daily chemical, detergent, pesticide, medicine, lubricant, edible oil , etc.. (For more application industry, please click “Free Consultation” )
-
Applicable MaterialsMaterials shall be with viscosity less than 100,000 cps, liquid or slurry with a certain liquidity such as edible oil, emulsion paint, color paste, industrial paint, curing agent, organic solvent, water-based ink, suspension concentrate, adhesive, detergent, etc..
Product Advantages
-
Filling quickly, wide application
Filling head can use single or double, piston working, high filling speed, cost savings, and reduce the workers’ work pressure; It is suitable for round, square, flat and various diameter of filling.01
-
Convenient operation, easy maintenance
Pedal switch operation, convenient and practical,operation can be finished by one person, all equipped with imported components, so the quality is stable and reliable.02
-
Environmental protection index outstanding and safe operation
Full pneumatic control meet the requirements of explosion-proof; Immediately after filling, the lid-clamping and lid-pressing finished quickly, less solvent evaporation, and the environment is good.03
Working Principle
When feeding valve is open, discharging valve is closed, the piston rod back kick, to draw the material from raw material tank into piston cavity; Close the feeding valve and open the discharging valve, piston rod pushed forward, to bring the material from piston cavity to the tank. Reciprocating work, with a roller conveyor and lid-pressing/clamping device, the machine completes the material filling and sealing process.
Recommended Product
Technical Parameter
| Model | Air Source
（Mpa） |
Filling Range
（L） |
Filling Speed
（Can/min） |
Material | Filling Error
（ml） |
Size
(mm) |
Gland Way |
|---|---|---|---|---|---|---|---|
| SGZV-1 | 0.5 | 0.1-1 | 15-25 | Material Contact SS304 Stainless Steel | ±2 | 1520*1000*1600 | clamping/pressing lid |
| SGZV-5 | 0.5 | 0.5-5 | 10-15 | Material Contact SS304 Stainless Steel | ±5 | 1700*1000*1600 | clamping/pressing lid |
| SGZV-20 | 0.5 | 5-20 | 3-10 | Material Contact SS304 Stainless Steel | ±15 | 1900*1000*1700 | clamping/pressing lid |
* If any change in the above table, subject shall prevail without notice.
