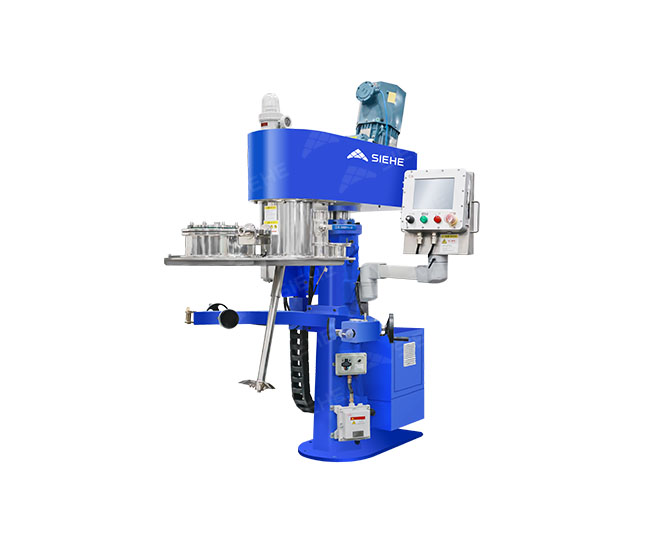

Hydraulic High-speed Disperser with Lifting Cover

High-speed Disperser with lifting cover is a functional product developed based on the standard Hydraulic High-speed Disperser. Its unique lifting cover structure can prevent material splash and reduce the solvent volatilization effectively. The designed flat cover is applicable for containers with different size and shape. Controlling the independent lifting of the cover through the air cylinder or sheath structure is convenient and easy. Also the cover can be designed to be with small half lid fixed with hinges, easy to open. And it is interlocked with the valve of the port connecting with the dust collector to realize dust-free materials charging and view the production situation at any time.

Гидравлический диссольвер с подъёмной крышкой
Гидравлический диссольвер с подъёмной крышкой
Гидравлический диссольвер с подъёмной крышкой
  • Material Viscosity
    ≤100000 cps
  • Production Capacity
    20-20000L

  • Application Fields
    Applicable for dispersing and mixing materials in industries such as biology, medicine, food, dye, coating, ink, adhesives, pesticides and etc. (Please click "Free Consultation "for more information)
  • Applied material
    Material under 100000 cps viscosity, and solid content under 80% of all kinds of slurry; Such as emulsioni paint, industrial paint, water-based ink, pesticides, adhesives etc.

Product advantages

  • Higher efficiency, better quality
    The Max. rotation speed can be up to 2930rpm (For bigger power, 1450rpm), linear velocity is over 20m/s, it can rapidly disperse the powder in the liquid evenly; Due to the strong shearing force , the materials are dispersed evenly and form good suspension effect.
    01
  • Safe and convenient operation
    Adopt hydraulic cylinder as lifting actuator. Control the hydraulic up, stop, down through the oil pump, easy operation and stable. The dispersing disc is fixed to the main shaft with Hexagon socket-head cap screws, which can be disassembled and exchanged quickly, easy to clean. Different dispersing discs can be exchanged accordingly to production process to obtain optimized dispersing result. Different clamping types(Belt Clamping, Manual Rotation Clamping, Pneumatic Clamping) are optional to fix the tanks properly to prevent from accident due to the tank displacement during operation.
    02
  • Higher environmental protection index
    With independent sheath/lifting cover, can close with the tank to reduce the solvent volatilization.
    Also the cover is with small half lid (fixed with hinges) which is interlocked with the port of the dust collector to realize powder / additive charging through negative pressure to improve working environment.
    03

Working Principle

Through the high-speed rotation dispersing disc, the materials will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.

The hydraulic pump drives the hydraulic cylinder to go up and down, which drives the whole transmission and working set up and down.

Stainless steel cover (cylinder or sheath type lifting) can be lift up and down independently to ensure it always close with the tank.

2022112103171196

Related Machines

Hydraulic High-speed Disperser with Lifting Cover
Hydraulic High-speed Disperser with Lifting Cover

Technical parameters

Model Motor power (km) Speed (rpm)

Disc Dia (mm)

 Material Capacity (L) Hydraulic power (kw) Lifting (mm) Weight (kg)
SFSG-1.5 1.5 0-1450rpm 120 Contact material is SS304 ≤60 0.55 600 500
SFSG-4 4 0-1450rpm 200 Contact material is SS304 ≤200 0.55 900 700
SFSG-7.5 7.5 0-1450rpm 230 Contact material is SS304 ≤400 0.55 900 900
SFSG-11 11 0-1450rpm 250 Contact material is SS304 ≤500 0.55 900 1100
SFSG-15 15 0-1450rpm 280 Contact material is SS304 ≤700 0.55 900 1200
SFSG-18.5 18.5 0-1450rpm 300 Contact material is SS304 ≤800 0.75 1100 1400
SFSG-22 22 0-1450rpm 350 Contact material is SS304 ≤1000 0.75 1100 1600
SFSG-30 30 0-1450rpm 400 Contact material is SS304 ≤1500 0.75 1100 1800
SFSG-37 37 0-1450rpm 400 Contact material is SS304 ≤2000 1.1 1600 2000
SFSG-45 45 0-1450rpm 450 Contact material is SS304 ≤2000 1.1 1600 2400
SFSG-55 55 0-1450rpm 500 Contact material is SS304 ≤2500 1.1 1600 2600
SFSG-75 75 0-1450rpm 550 Contact material is SS304 ≤4000 2.2 1800 2800
SFSG-90 90 0-950rpm 600 Contact material is SS304 ≤6000 2.2 1800 3200
SFSG-110 110 0-950rpm 700 Contact material is SS304 ≤8000 3 2100 3500
SFSG-132 132 0-950rpm 800 Contact material is SS304 stainless steel ≤10000 3 2300 4000



Remarks:

* The capacity is data based on materials with viscosity approx. 1000cps, specific gravity 1g/cm3 as medium. The model selection shall be based on the data such as the materials viscosity, density etc..

* Special operation condition, such as high temperature, high pressure, explosive, combustible and corrosive etc, details are required for correct model selection.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
